Laser cleaning machine processing sample picture

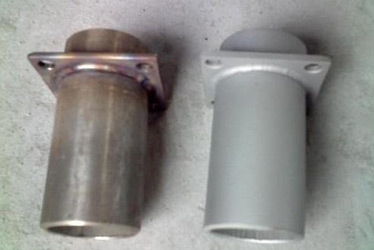

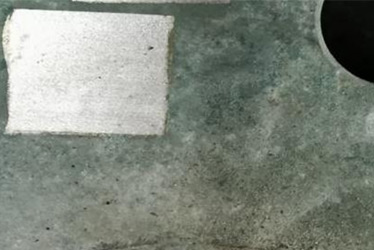

Copper alloy surface patina cleaning		Cleaning of oxide and pollutant on the surface of steel pipe

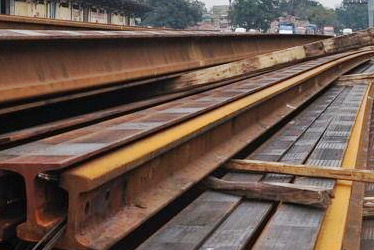

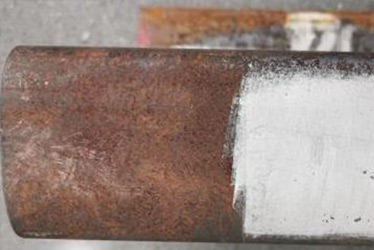

Rail derusting		Coat removal

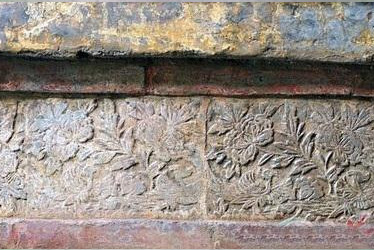

Mural cleaning		Rail derusting

Scope of application

Laser cleaning has no grinding, non-contact characteristics, not only can be used to clean organic pollutants, can also be used to clean inorganic substances, including metal rust, metal particles, dust, etc., application effects include: rust removal, paint removal, oil removal, cultural relic restoration, glue removal, coating, coating. It is suitable for cleaning in the case of thick rust layer, paint layer and deep oil stain, as well as surface roughness, welding seam cleaning and other process links, with high efficiency. Application industries: aviation, ships, cultural relics protection, automobile surrounding, food industry, track, rubber mold, others.

Performance characteristics

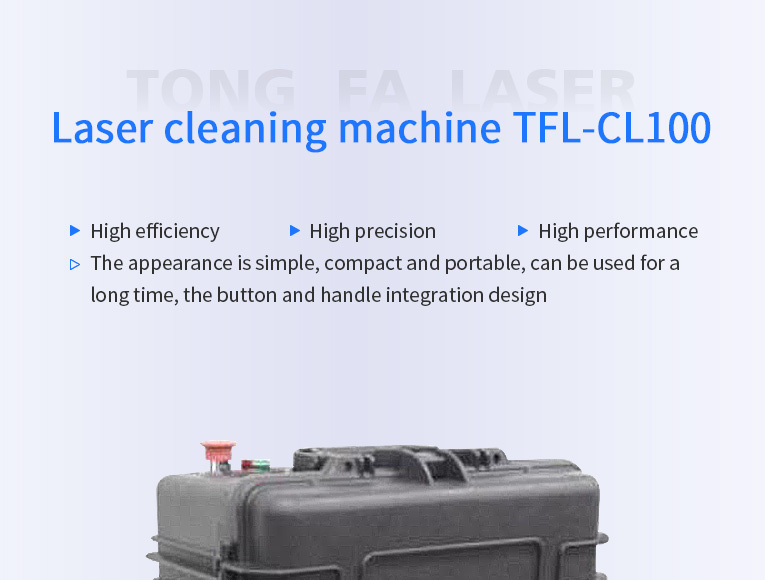

Relying on the advantages of the MOPA structure, the cleaning machine is equipped with a 100W cleaning pulse fiber laser as the cleaning source. The laser employs the Master MOPA (Master Oscillator Power Amplifier) structure, where the main oscillator uses the semiconductor laser as the seed source. The power amplification is realized by the traveling wave fiber amplifier. The MOPA fiber laser has independent pulse width and frequency adjustable features, and can maintain a high stable peak power output even with changes in pulse width and frequency to suit a wider range of cleaning scenarios.

The appearance of the hand-held laser head is simple, small and lightweight, can be used for a long time, the integrated design of keys and handles, simple and easy to use. The built-in scanning system uses small high-speed motor and drive, the main body is integrated processing and forming, strong dust-proof and stable and durable. The laser head adopts the innovative red light assisted focusing design, which can easily find the focusing position under different field mirrors by using the red light indication, and solves the problems of inaccurate focusing and single adjustment mode of existing products on the market.

1. It can work off-line and be cleaned with power on

2. Laser collimation output, output spot size can be customized (default 4mm spot)

3 laser cleaning head extreme lightweight, weight only 620g (without armor cable), can be hand-held for a long time

4. Patented red light auxiliary focusing technology, which can adjust the focusing position according to different field mirrors

5. Wireless control, remote parameter setting and light control, update parameters at any time

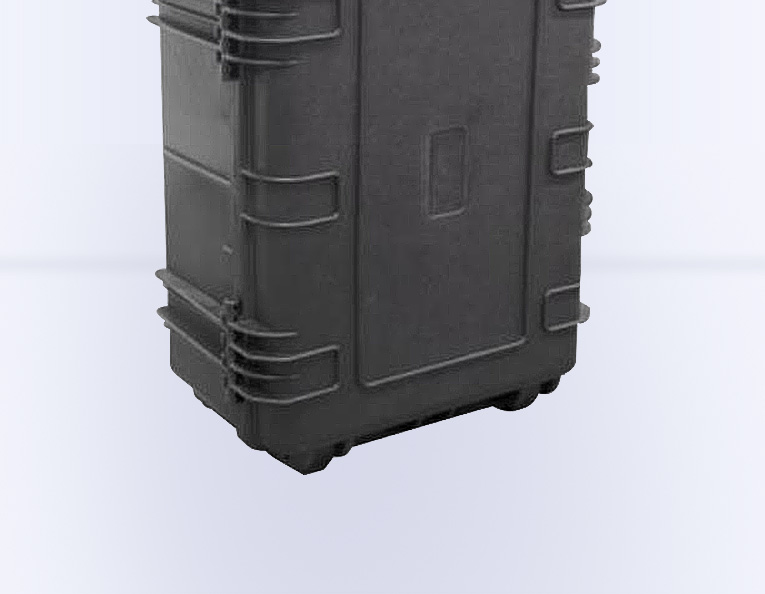

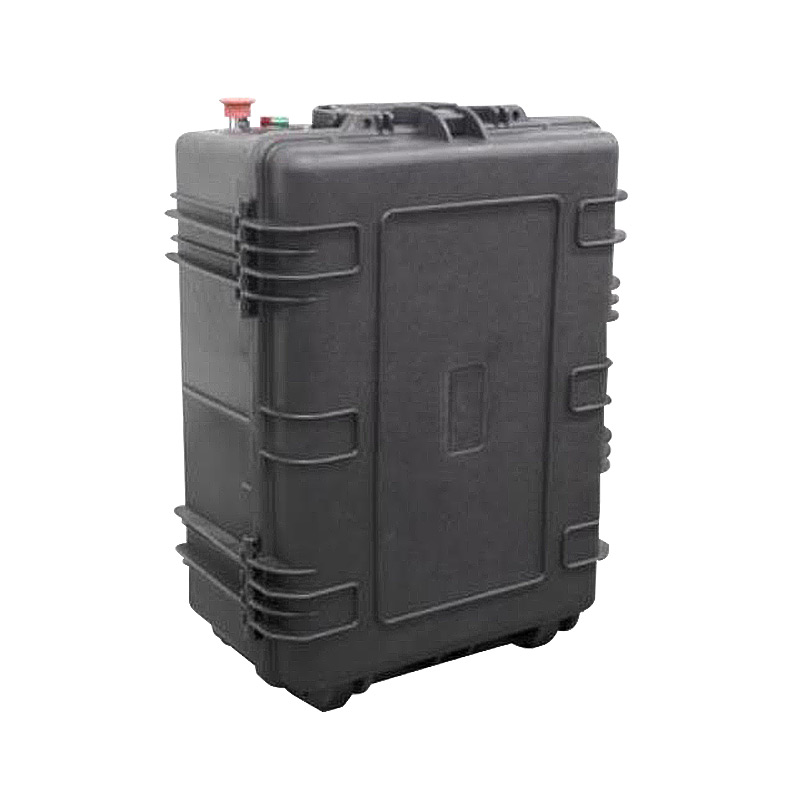

6. Portable puller box design, the whole machine weight 28kg, can take high-speed rail or air consignment

7. Super integrated injection molding case, buffer design, stable structure, wear-resistant, shockproof, anti-fall
