Multi-station laser marking machine laser engraving sample display

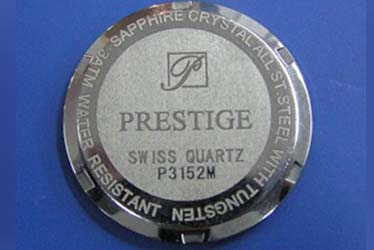

Watch bottom case laser marking effect	Laser marking effect of electronic products

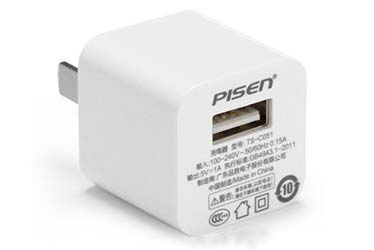

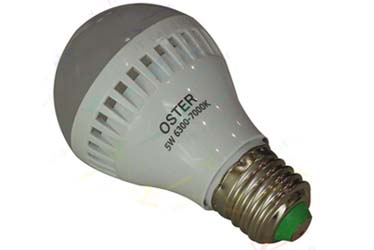

Charger laser marking effect	LED housing laser marking effect

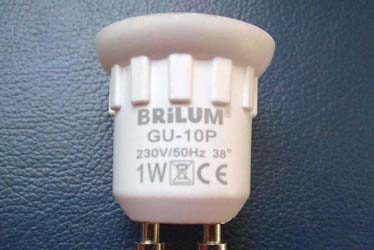

Laser marking effect of household appliances	Plastic laser marking effect

Scope of application

High quality requirements of mass products laser marking processing. Mainly used in electronic components, automobile instrument keys, mobile phone keys, mobile phone shell, sound transmittance keys, one-dimensional/two-dimensional laser bar code, silicon wafer and other laser marking.

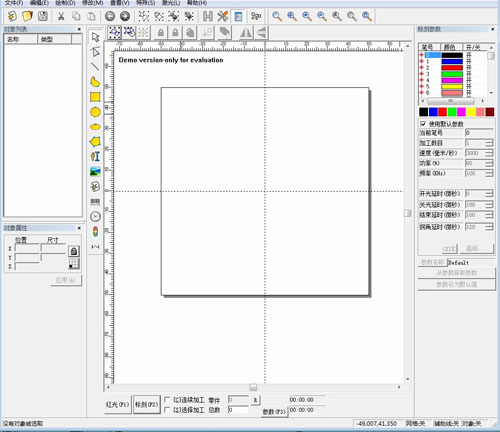

Laser marking machine software use


The laser marking machine configuration control software is simple to operate, easy to learn and easy to use:

1.can design processing of simple graphic patterns;

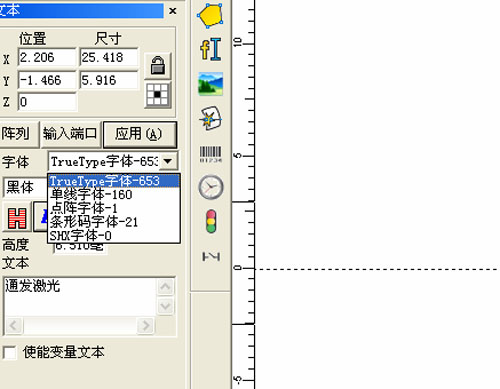

2. The software supports TrueType fonts, single-line fonts (JSF), SHX fonts, dot matrix fonts (DMF), one-dimensional bar codes and two-dimensional bar codes;

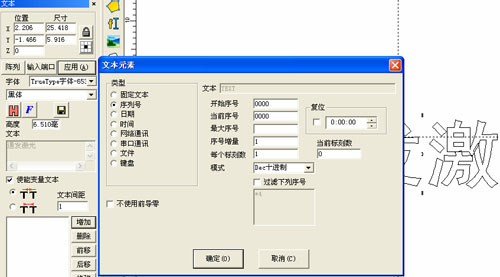

3. Flexible variable text processing, real-time change of text in the process of processing, can directly dynamically read and write text files and Excel files;

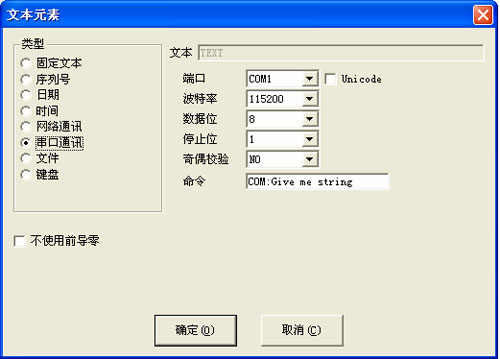

4. Text data can be read directly through serial port;

5. The laser marking software can realize automatic text segmentation function, can adapt to complex processing;

6. Powerful node editing function and graphic editing function, curve welding, cutting and intersection operation;

7. Supports up to 256 pens (layers) and can set different processing parameters for different objects;

8. Compatible with common image formats (bmp,jpg,gif,tga,png,tif, etc.);

9. Compatible with commonly used vector graphics (ai,dxf,dst,plt, etc.);

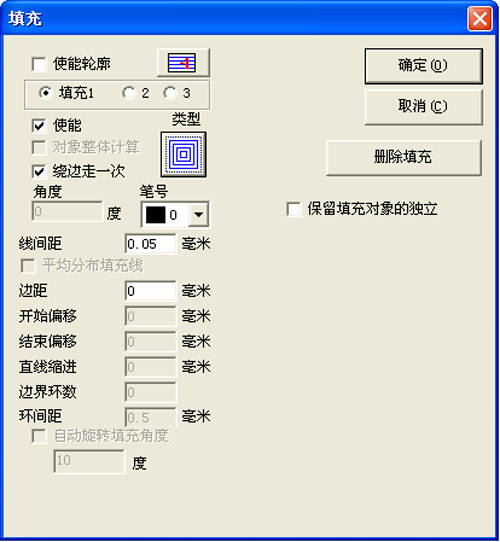

10. Powerful filling function, support ring filling;

11. A variety of control objects, users can freely control the system and external device interaction.

Performance and characteristics

1. Excellent beam quality: compared with the traditional solid laser marking, its fundamental mode output, focusing spot diameter is less than 20μm. Excellent beam quality with 20W laser power, so that the engraving processing of metal products straight side, clear corners, especially suitable for precision, fine metal products deep engraving.

2. Low use cost: electro-optical conversion efficiency can reach 30%, the power consumption of the whole machine is only 600W;

3. Maintenance-free, long life: use laser diode as pump source, fully closed optical path design;

4. Processing speed: processing speed is 5-10 times of the traditional laser marking machine;

5. Achieve one key adjustment laser focus, save focusing time.

Laser and vibroscope

	Optional 20W domestic mature laser
	Optional 30W domestic mature laser
	Domestic mature laser marking machine high speed vibroscope, stable performance

Accessories and consumables


	Laser marking machine f-θ focusing field mirror Accessories Description: Field mirror according to the wavelength: 1064nm field mirror (also called YAG field mirror), 10.6 micron field mirror (also called CO2 field mirror), 532nm field mirror (also called green field mirror), 355nm field mirror (also called ultraviolet field mirror). This model is imported 1064nm laser marking airport mirror, processing range (unit mm) : 70*70; 100*100; 150 * 150
	Aluminum business card Part description: Aluminum business card is used to debug the laser marking machine test laser focal length and test laser energy tools. Aluminum business card shape and ordinary business card similar, thickness is 0.1mm, the surface through anodizing, due to the thin thickness, in debugging focal length, only the aluminum business card placed on the processing surface of the product, the upper and lower adjustment of the laser head, until the laser energy on the aluminum business card is strong, the surface workpiece is also in a better marking focal length height.
	Laser marking machine rotation axis (optional) Accessories description: Laser marking rotary head is used for circular products on the outer surface of the laser marking, the equipment software has the function of vibration mirror and rotating head 3-axis linkage marking, after a variety of rotary marking parameters set, can be 360° marking, if the measurement of product diameter is accurate, can realize seamless marking, no joint.

Product parameter
