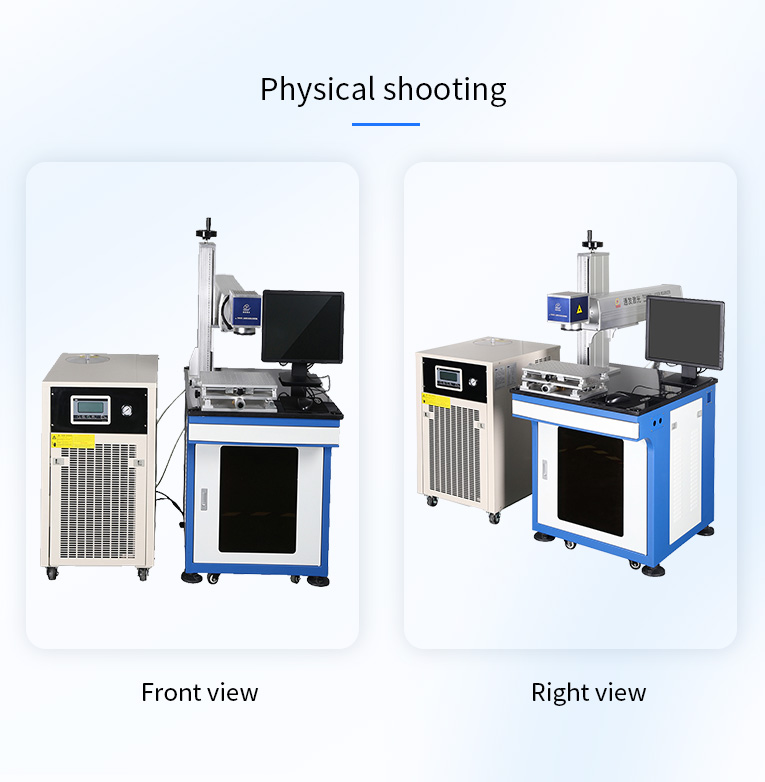

Semiconductor laser marking machine marking samples

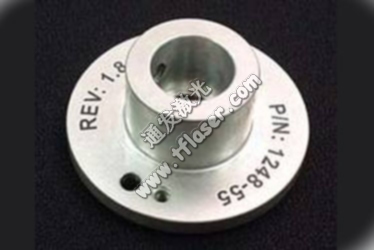

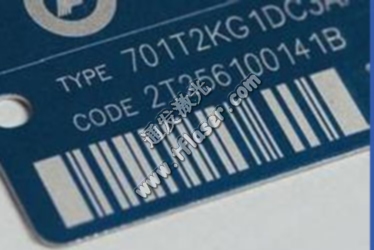

鋁制五金版件激光打標		鋁名片激光打標

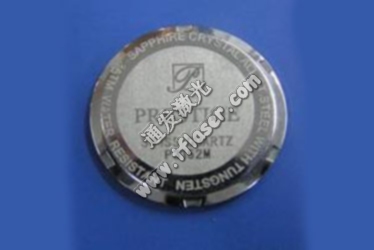

手表殼激光打標		不銹鋼材料激光打標

Accessories and consumables

		Laser marking machine f-θ focusing field mirror Accessories Description: Field mirror according to the wavelength: 1064nm field mirror (also called YAG field mirror), 10.6 micron field mirror (also called CO2 field mirror), 532nm field mirror (also called green field mirror), 355nm field mirror (also called ultraviolet field mirror). This model is imported 1064nm laser marking airport mirror, processing range (unit mm) : 70*70; 100*100; 150 times 150.

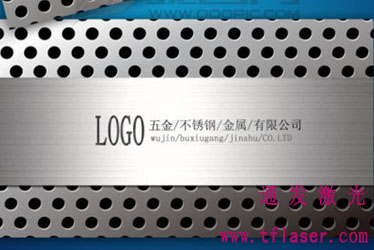

		Aluminum business card Part description: Aluminum business card is used to debug the laser marking machine test laser focal length and test laser energy tools. Aluminum business card shape and ordinary business card similar, thickness is 0.1mm, the surface through anodizing, due to the thin thickness, in debugging focal length, only the aluminum business card placed on the processing surface of the product, the upper and lower adjustment of the laser head, until the laser energy match on the aluminum business card display, also reflects the workpiece in a better marking focal length height.
		Laser marking machine rotation axis Accessories description: Laser marking rotary head is used for circular products on the outer surface of the laser marking, the equipment software has the function of vibration mirror and rotating head 3-axis linkage marking, after a variety of rotary marking parameters set, can be 360° marking, if the measurement of product diameter is accurate, can realize seamless marking, no joint.

Scope of application

Automotive machinery industry: metal bearing laser engraving, steel sleeve laser laser engraving, piston ring laser marking, machine tool nameplate laser marking, etc.

Electronic communication industry: plastic keyboard laser marking, electronic components housing laser marking, home appliances panel laser marking, etc.

Hardware equipment industry: tool calibration laser marking, tool laser marking, tableware laser engraving, medical equipment laser engraving, etc.

Buckle sign industry: bag buckle laser marking machine, belt buckle laser engraving machine, gold and silver jewelry laser engraving, etc.

Instrument glasses industry: metal case laser engraving, optical frame laser engraving, instrument panel laser marking, etc.

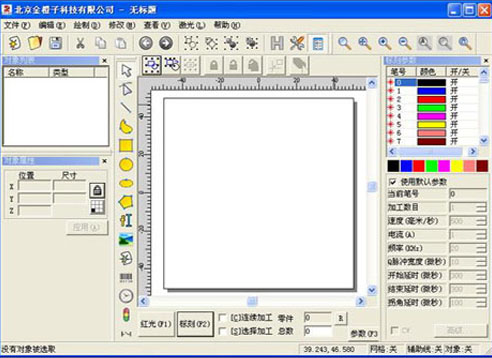

Software use

1. This software is easy to operate, easy to use, and has many functions;

2. Free design of the graphics to be processed;

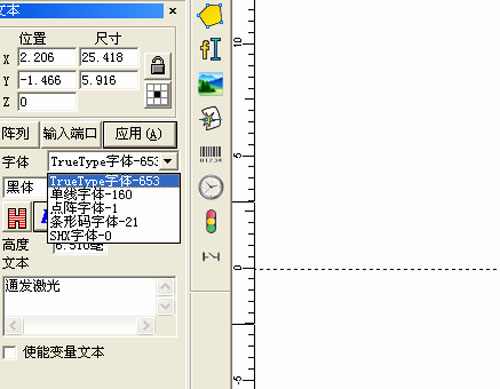

3. Support TrueType fonts, single-line fonts (JSF), SHX fonts, lattice fonts (DMF), one-dimensional bar codes and two-dimensional bar codes;

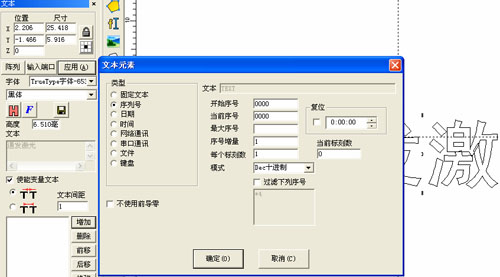

4. Flexible variable text processing, real-time change of text in the process of processing, can directly dynamically read and write text files and Excel files;

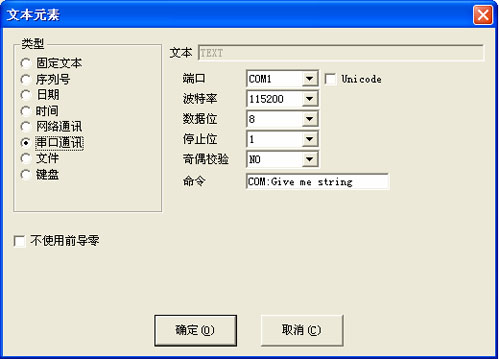

5. Text data can be read directly through serial port;

6. Text data can be read directly through network port;

7. There are automatic text segmentation function, can adapt to complex processing;

8. Powerful node editing function and graphic editing function, can be curve welding, cutting and intersection operation, support up to 256 pens (layers), can set different processing parameters for different objects;

9. Compatible with common image formats (bmp,jpg,gif,tga,png,tif, etc.);

10. Compatible with commonly used vector graphics (ai,dxf,dst,plt, etc.);

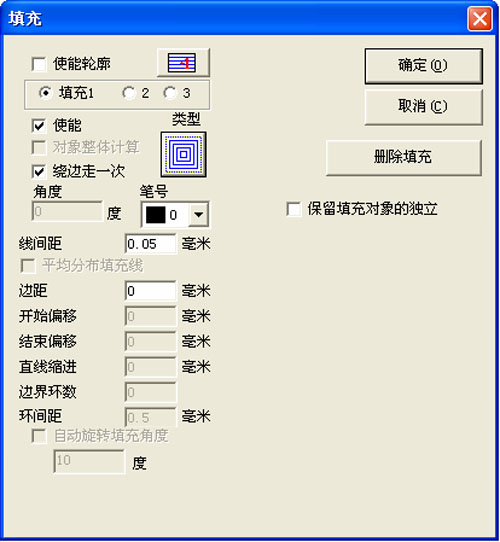

11. Powerful filling function, support ring filling;

12. A variety of control objects, users can freely control the system and external device interaction.

Performance characteristics

Mature laser side pump technology, good beam quality, stable laser power, more suitable for mobile phone metal shell, mobile phone buttons, most of the general laser marking products, the power of 1.5kW, only 1.5 degrees of electricity per hour; The service life of the semiconductor light module can reach 13,000 hours, which changes the defect that the traditional lamp pump marking machine often changes the lamp tube.

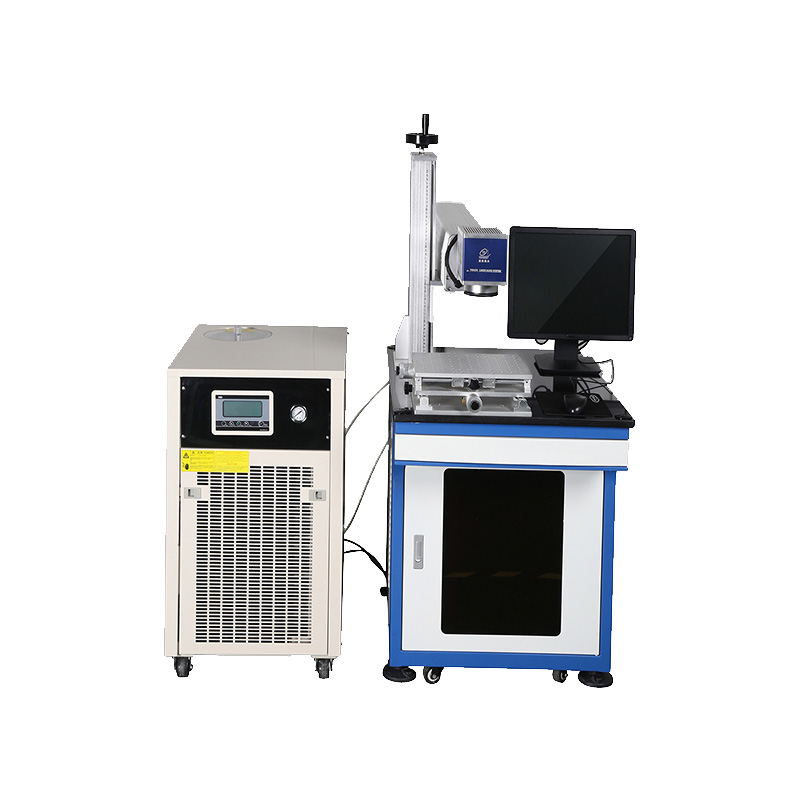

Semiconductor laser marking machine core accessories

Domestic mature universal semiconductor light source module is selected

The domestic mature universal scanning galvanometer is selected

Select the British Gu Qi horse high speed acousto-optic Q switch
